F175 AWG
The F175 is a 20 MHZ arbitrary waveform generator. It can produce sine, square, saw, white, pink, brown noise as well as any user defined waveform. Here are the specifications:
- 20 MHZ max analog bandwidth
- 100 MHZ sampling rate
- 14 bits per sample DAC
- 262144 samples memory (256 K * 16 bit words)
- Max DC amplitude 13 Vpp
- Max AC amplitude 26 Vpp
- Output low pass filter: 35 MHZ
- Standalone operation, runs Linux 32 bit OS internally with Qtopia user interface
- All generator functions are programmable via LUA scripting
- Ethernet interface for connection to PC/Mac/Linux/etc and operation via web interface
- Fully programmable from a PC/Mac/Linux/etc web browser (Explorer, Firefox or Safari)
Some sample waveforms generated with the F175. Oscilloscope is a Tektronix 475 100 MHZ.:
|
|
|

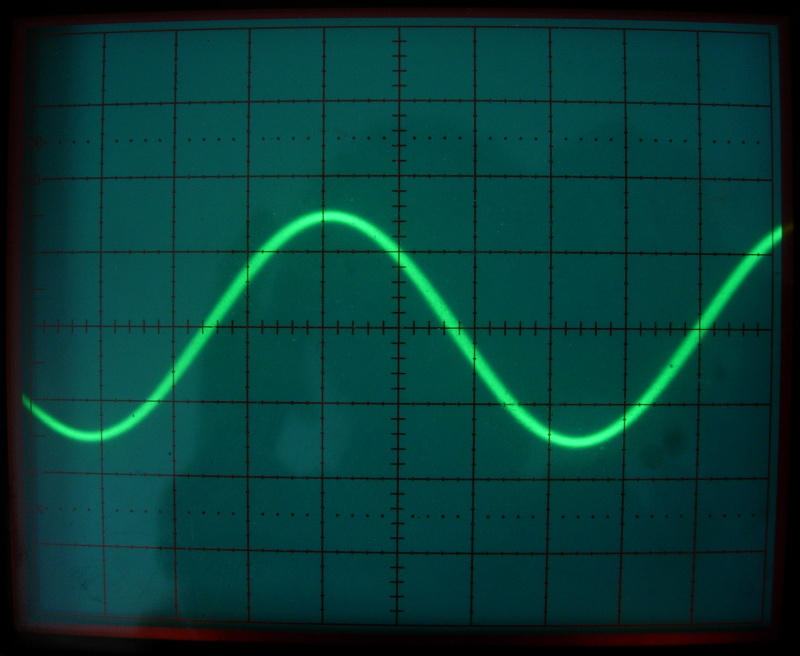

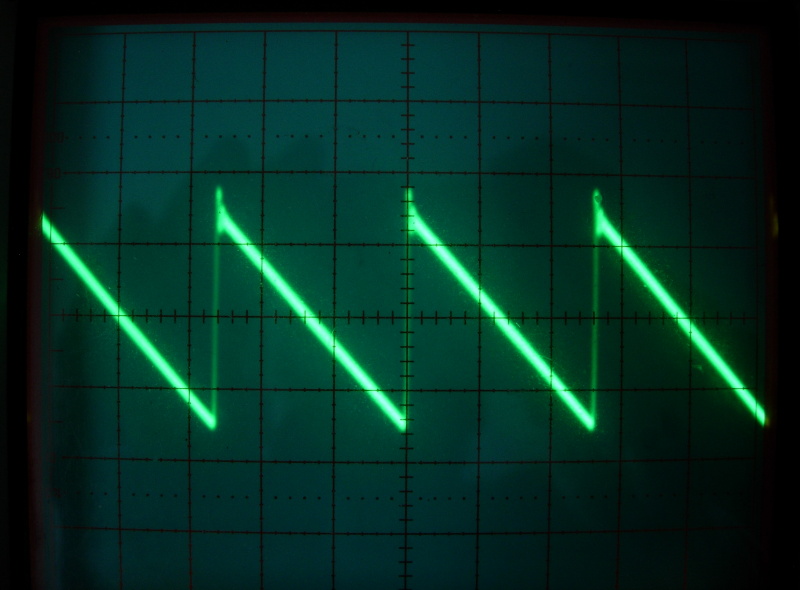

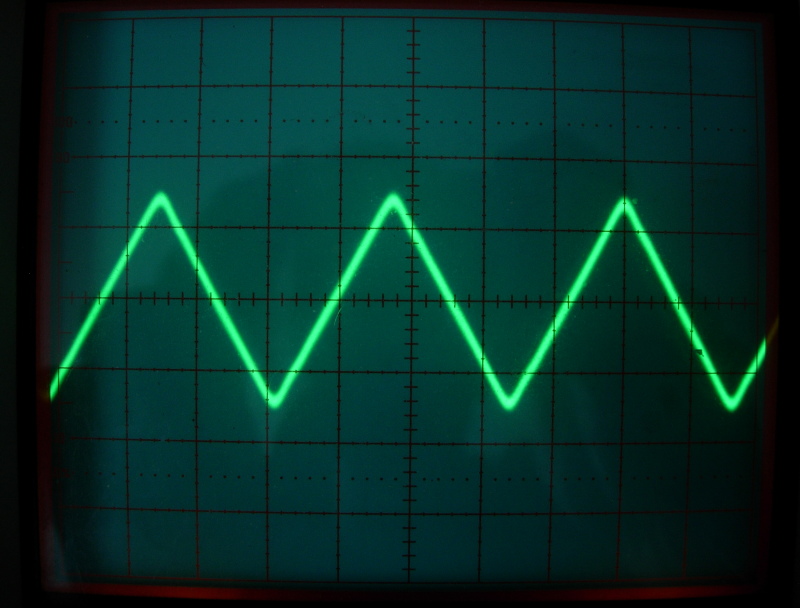

| 3 MHZ sine wave | 3 MHZ triangle wave | 800 KHZ saw wave |
Production update March 4 2010:
The hardware is done and software is in beta release. Click on pictures for a larger view:
 |  |
| F175 Touch Sensitive LCD | F175 Function generation board |
We will start taking orders for F175 boards soon. We do not have cases
yet. We expect to have F175 with cases in mid April 2010. If you are
interested in purchasing F175 boards only, email us at probin @
atelierrobin.net
Note: The F175 AWG does not replace our current square wave generator models (F125/165/170/110). It is an arbitrary waveform generator. Its main strength is in producing non-square waves. Of course it is also able to produce square waves but if you only need generate square waves, please look at our other models: F125/165/170/110.
